Welded Mesh Manufacturers

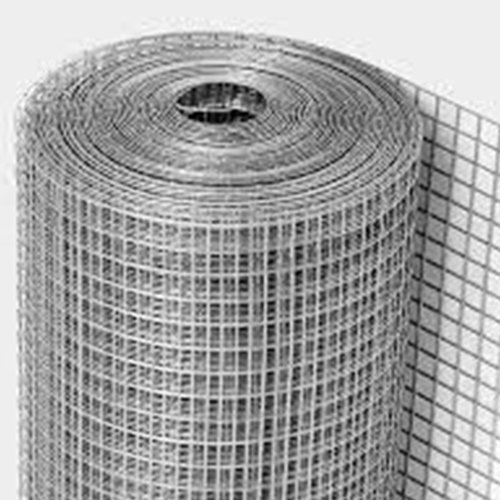

Welded Mesh Panel — MS / GI / SS

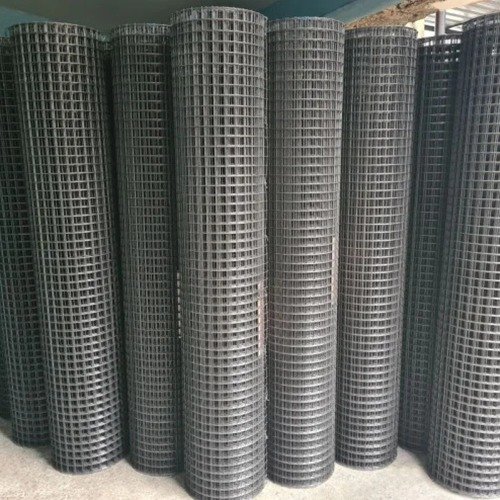

Welded Mesh Manufacturers - welded wire mesh panel

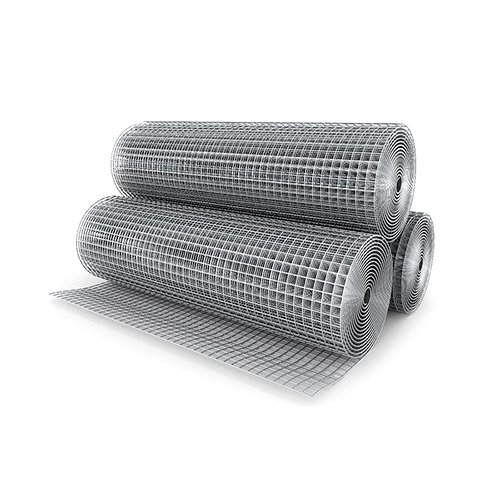

Welded Mesh Manufacturers - GI and SS welded mesh

Our in-house brand, trusted since the 1960s for supreme quality and reliability across industries.

Welded wire mesh is made through an automatic process and sophisticated welding technique at every intersection. The product is level and flat. PARSH NATH MANUFACTURERS PVT LTD has been engaged in producing and selling welded mesh for over 25 years, marketed under the trusted SNAKE® Brand.

It is manufactured in Square & Rectangular welds at regular intervals in Mild Steel (M.S.), Galvanized Iron (G.I.), and Stainless Steel (S.S.).

Usage / Applications

Bins & Storage Filtration Fencings Freezers Egg Baskets Shelves Tree Guards Runway Enclosures Slope Protection Gabions Poultry Houses Window Guards Bank Cabin Guards Plant Nurseries Scrap Containers Store Partitions Animal & Bird Cages Tray & Cooking Grills Walls & Basement Flooring Plant & Machinery Protection Water Tanks Swimming Pools Flooring & Ceiling Air Conditioners Motor Ventilators Fruit Drying Screen

Technical Specifications

Weld Type

Square & Rectangular at regular intervals

Width Available

3 ft to 5 ft | Custom sizes on order

Material

Mild Steel (M.S.), Galvanized Iron (G.I.), Stainless Steel (S.S.)

Gauge Range

3 SWG to 22 SWG

Quality

SNAKE® Brand — trusted since the 1960s

Standard Sizes & Specifications

Standard Mesh		Fine Mesh
Mesh Size (mm)	Gauge (SWG)	Mesh Size (mm)	Gauge (SWG)
25 × 25 mm	20 – 10	8 × 8 mm	22 – 17
30 × 30 mm	20 – 10	10 × 10 mm	22 – 17
50 × 50 mm	20 – 6	12.5 × 12.5 mm	20 – 14
50 × 25 mm	20 – 6	15 × 15 mm	20 – 14
75 × 25 mm	20 – 5	17 × 17 mm	20 – 12
75 × 75 mm	20 – 5	20 × 20 mm	20 – 12
100 × 100 mm	20 – 3	22.5 × 22.5 mm	20 – 12
150 × 150 mm	20 – 3	—	—
200 × 200 mm	20 – 3	—	—

How to Choose the Right Welded Mesh

Welded mesh is made by welding crossing wires at every intersection, so each panel stays flat and level and the openings stay fixed. That makes it a good choice for cages, guards, partitions, shelves and enclosures where a rigid panel is needed.

Pick the mesh size first. Fine meshes from 8 mm to 22.5 mm suit small cages, trays and filtration, while standard meshes from 25 mm to 200 mm suit fencing, guards, gabions and storage. Then choose the gauge: a lower SWG number means thicker, stronger wire.

For the material, mild steel is the economical choice for dry, sheltered jobs. Galvanized iron adds zinc protection against rust for outdoor and damp places, and stainless steel suits wet, hygienic or corrosive settings such as freezers, cooking grills and swimming pools.

Panels come in widths of 3 to 5 feet, with custom sizes made to order. Tell us the mesh size, gauge, material, panel size and quantity, and we will quote for your job. You may also like our gabion boxes and chain link fencing.

Welded Mesh FAQs

What is welded mesh?

Welded mesh, also called welded wire mesh, is made by welding crossing wires at every intersection using an automatic process, which gives a flat and level panel.

Which materials do you make welded mesh in?

We make welded mesh in mild steel (M.S.), galvanized iron (G.I.) and stainless steel (S.S.).

What sizes and gauges are available?

Panels are available in widths of 3 to 5 feet, with custom sizes on order, in gauges from 3 SWG to 22 SWG and mesh sizes from 8 x 8 mm to 200 x 200 mm.

Where is welded mesh used?

It is used for bins and storage, fencing, poultry houses, animal and bird cages, window guards, shelves, tree guards, gabions, machinery protection and many other jobs.
