Expanded Metal Manufacturers

Diamond-shaped openings — MS / GI / SS / Aluminium / Special Alloys

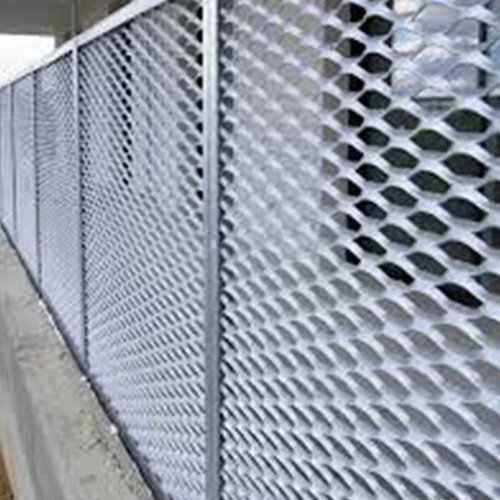

Expanded Metal Mesh

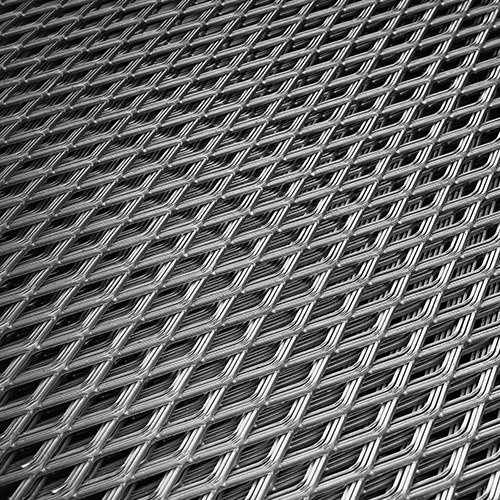

Expanded Metal Production

Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries.

We have been producing and supplying Expanded Metal Mesh for over 25 years under the trusted SNAKE® Brand.

Manufactured using advanced punching, stretching & flattening machines for perfect diamond-shaped openings. Opening Size: 0.5 mm to 50 mm | Any sheet size & thickness available.

Available Materials

Mild Steel (MS) Galvanized Iron (GI) Stainless Steel — 304 / 316 Aluminium Special Alloys

Usage / Applications

Machine & Equipment Protection Window Guards Aquatic Product Breeding Filtration Applications Concrete Reinforcement Speaker Grilles Arts & Crafts Partitioning & Security Covers Road & Railway Fencing Civil & Water Conservancy Step Mesh — Oil Tanks Working Platforms & Walkways Boiler & Mine Wells Vehicles & Ships Highway & Bridge Reinforcement

Technical Terms

Style Dimension / SWD

Nominal dimension — Short Way of Design (SWD)

Design Size

Actual dimension — SWD and LWD measured point to corresponding point

SWO & LWO

Short Way of Opening and Long Way of Opening

Strands

The sides of the expanded metal design

Strand Thickness

Thickness / Gauge of the metal expanded

Strand Width

Amount of metal fed under dies to produce one strand

Standard Specifications

Strand & Opening Dimensions				Sheet Details
Strand Thickness (mm)	Distance Short (mm)	Distance Long (mm)	Strand Width (mm)	Width (Mt)	Length (Mt)	Weight (Kg/M²)
0.5	2.5	4.5	0.5	0.5	1.0	1.80
0.5	10.0	25.0	0.5	0.6	2.0	0.73
0.6	10.0	25.0	1.0	0.6	2.0	1.00
0.8	10.0	25.0	1.0	0.6	2.0	1.25
1.0	10.0	25.0	1.1	0.6	2.0	1.77
1.0	15.0	40.0	1.5	2.0	4.0	1.85
1.2	10.0	25.0	1.1	2.0	4.0	2.21
1.2	15.0	40.0	1.5	2.0	4.0	2.30
1.5	15.0	40.0	1.5	1.8	4.0	2.77
1.5	23.0	60.0	2.6	2.0	3.6	2.77
2.0	18.0	50.0	2.1	2.0	4.0	3.69
2.0	22.0	60.0	2.6	2.0	4.0	3.69
3.0	40.0	80.0	3.8	2.0	4.0	5.00
4.0	50.0	100.0	4.0	2.0	2.0	11.15
4.0	60.0	120.0	4.0	2.0	7.5	4.00
4.0	80.0	180.0	4.0	2.0	10.0	3.00
4.0	100.0	200.0	4.0	2.0	12.0	2.50
4.5	50.0	100.0	5.0	2.0	2.7	11.15
5.0	50.0	100.0	5.0	1.4	2.6	12.39
5.0	75.0	150.0	5.0	2.0	10.0	3.00
6.0	50.0	100.0	6.0	2.0	2.5	17.35
8.0	50.0	100.0	8.0	2.0	2.1	28.26

How to Choose Expanded Metal Mesh

Expanded metal is made by punching and stretching a solid sheet so that it opens into diamond-shaped holes, with no weaving or welding needed. The strands stay joined to each other, so the sheet is strong and stays in one piece.

Start with the job. For machine guards, window guards, speaker grilles and partitions, a thin strand with a small opening is usually enough. For platforms, walkways and step mesh, choose a thicker strand, because it carries more load. For concrete reinforcement and fencing, the strand and opening are chosen to suit the structure.

Then choose the material: mild steel for general work, galvanized iron where rust is a concern, stainless steel 304 or 316 for wet or hygienic places, and aluminium when you need light weight.

Our sheets have openings from 0.5 mm to 50 mm and come in any sheet size and thickness. The standard specifications table above lists strand and opening sizes with weight per square metre, and other specifications can be made on request. Send us the material, strand thickness, opening size, sheet size and quantity for a quote. You may also like our perforated sheets and welded mesh.

Expanded Metal FAQs

What is expanded metal mesh?

Expanded metal mesh is a metal sheet that is punched and stretched into diamond-shaped openings using punching, stretching and flattening machines.

Which materials do you make expanded metal in?

We make expanded metal in mild steel (MS), galvanized iron (GI), stainless steel 304 and 316, aluminium and special alloys.

What sizes are available?

Opening sizes range from 0.5 mm to 50 mm, and any sheet size and thickness is available. Standard strand thicknesses run from 0.5 mm to 8 mm.

Where is expanded metal used?

It is used for machine and equipment protection, window guards, filtration, concrete reinforcement, speaker grilles, partitioning, fencing, walkways and platforms, and highway and bridge reinforcement.
