Gabion Boxes Manufacturers

Heavy Hexagonal Wire Netting — Galvanized / Galfan / PVC Coated

Gabion Box

Gabion Basket

Gabion Wall

Gabion Box Gabion Basket Gabion Mattress Gabion Wall Stone Cage

Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries that require premium quality metal meshes.

We offer Gabion Boxes, Gabion Mattresses, Gabion Baskets and Stone Cage Gabion Walls — unfolded and laid on prepared ground. Designed and supplied with heavy hexagonal wire netting for structural integrity in civil engineering, erosion control and water management applications.

Key Applications

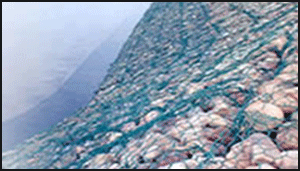

Control & Guide of Water / Flood Flood Bank & Guiding Bank Preventing Rock Breaking Water & Soil Protection Bridge Protection Strengthening Structure of Soil Seaside Area Protection

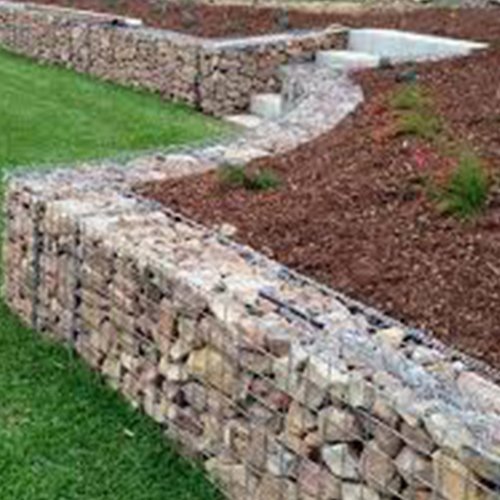

Gabion Wall Application & Specifications

Gabion Boxes Manufacturers - gabion wall application

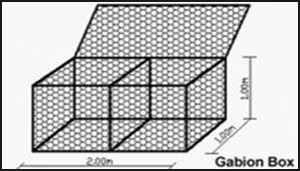

Gabion Sizes	2m × 1m × 1m • 3m × 1m × 1m • 4m × 1m × 1m 2m × 1m × 0.5m • 4m × 1m × 0.5m Custom orders available
Mesh Openings	60×80 • 80×100 • 80×120 • 80×140 100×120 • 120×150 • 200×260 mm
Wire Thickness	2.00 mm — 3.4 mm
Finish	Hot-Dipped Galvanized Galfan (Zn-Al Alloy) PVC Coated

How to Choose Gabion Boxes

A gabion box is a heavy wire netting basket that you fill with stone on site. Because it is supplied unfolded and laid on prepared ground, it is quick to set up, and the stone-filled boxes form a strong wall that holds soil and slows water.

Choose the box size to fit your wall or bank. Standard sizes run from 2 m x 1 m x 0.5 m to 4 m x 1 m x 1 m, and custom sizes can be made. The mesh opening, from 60 x 80 mm to 200 x 260 mm, should be smaller than the stone you plan to use, and thicker wire, up to 3.4 mm, gives a stronger box for heavy loads.

For the finish, hot-dipped galvanized wire is the standard protection against rust. Galfan, a zinc-aluminium alloy, and PVC coating add extra protection where the box will sit in water or near the sea.

Gabions are widely used for flood banks, water control, bridge protection, soil strengthening and seaside protection. Tell us the box size, mesh opening, wire thickness, finish and quantity, and we will quote for your site. You may also like our hexagonal wire netting and welded mesh.

Gabion Boxes FAQs

What is a gabion box?

A gabion box is a wire netting box filled with stone. Ours are made from heavy hexagonal wire netting and are used in civil engineering, erosion control and water management.

What sizes are available?

Standard sizes are 2 m x 1 m x 1 m, 3 m x 1 m x 1 m, 4 m x 1 m x 1 m, 2 m x 1 m x 0.5 m and 4 m x 1 m x 0.5 m. Custom sizes can be ordered.

Which finishes are available?

Gabion boxes are available in hot-dipped galvanized, Galfan (zinc-aluminium alloy) and PVC coated finishes.

What are gabions used for?

They are used for water and flood control, flood banks and guiding banks, preventing rock breaking, water and soil protection, bridge protection, strengthening soil structure and seaside area protection.
