Pre-Crimped (Double Crimped) Weaving Technology
In the pre-crimping process, wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires and insure that the wires will lock firmly together at the intersections. The pre-crimped wires are then assembled in custom designed assembly machines (looms).
When open area is important. Extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.

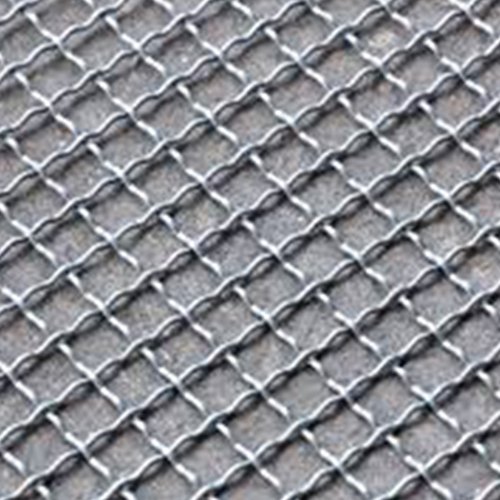

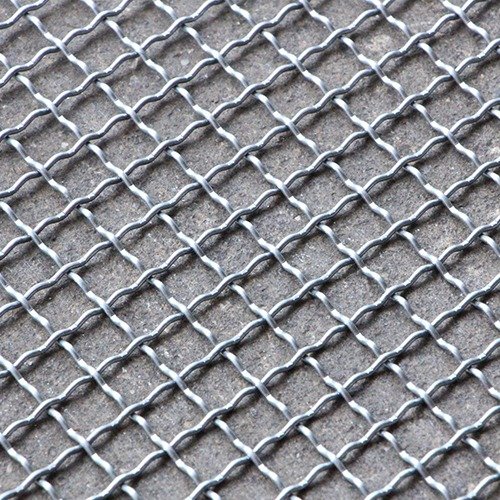

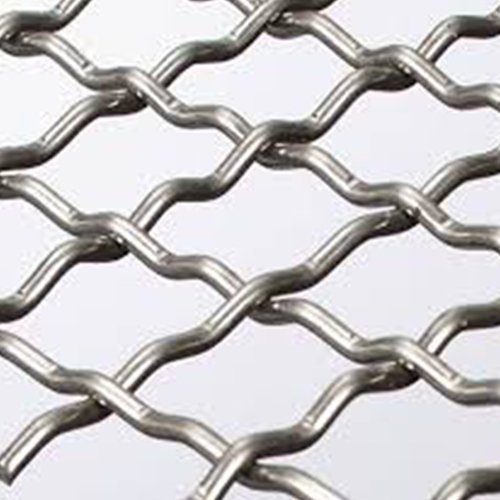

Pre-crimped wire cloth has very accurate openings and is woven much tighter than plain weave. It is typically preferred for vibrating screens and many other applications where sizing and strength is critical. These are very accurate & Consistent.
Usage:
- As wire mesh for pig breeding, mine and stone works, glass factory, coal mine, petroleum, hardware products, etc.

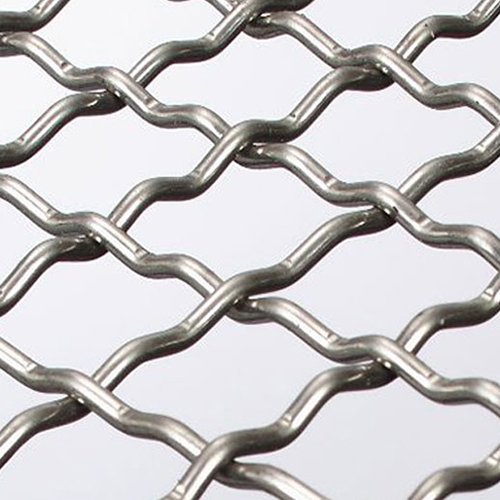

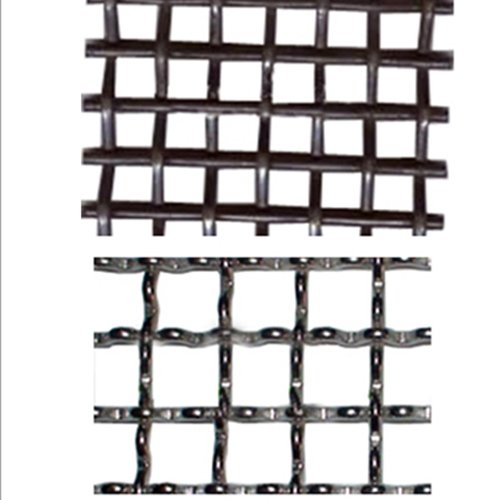

- Heavy duty crimped wire mesh products are mostly used as screen in mining, coal factory, construction and other industries.

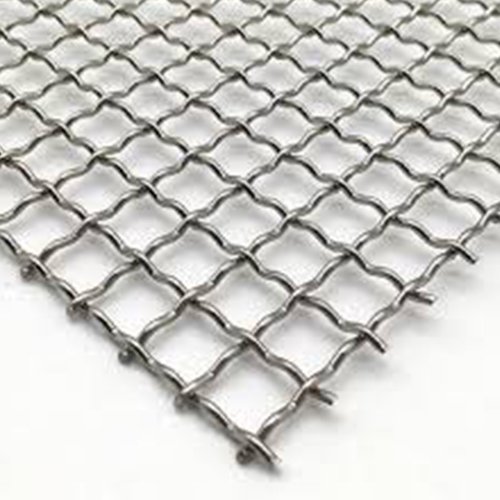

- Stainless steel crimped wire mesh is mainly used in foodstuff, mine, chemical industry, pharmacy, metallurgy, machinery, protection, construction, arts and crafts.
| Opening Width | 1 mm to 100 mm |
|---|---|
| Widths | 24 SWG (0.54 mm) to 5 SWG (5.39 mm) |
| Wire Gauge | 1 Feet to 7 Feet |
| Length | 105 Feet |
| Material | Stainless Steel (Grade – 410, 304, 202 etc) Spring Steel - High Carbon Steel, Galvanized Iron (G.I.) Mild Steel (M.S.) Wire, Brass, Copper etc. |
Contact us for detailed specifications and competitive pricing.
