Perforated Sheets Manufacturers
Punched Metal Sheets — MS / GI / Aluminium / SS / Special Alloys

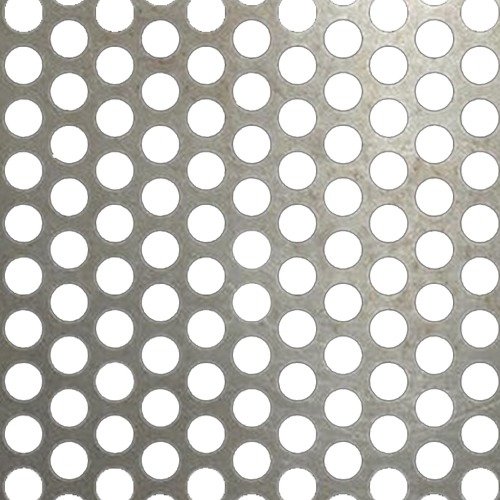

Perforated Sheet

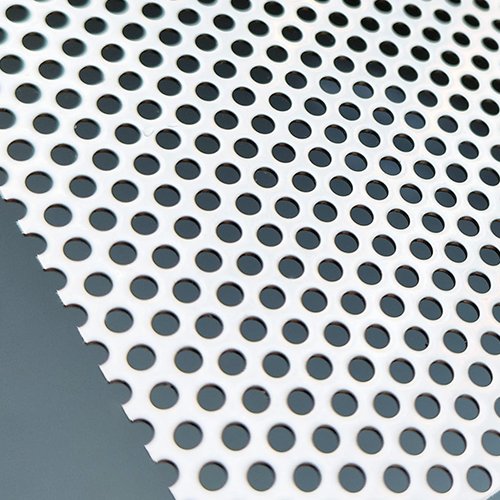

Perforated Metal Panel

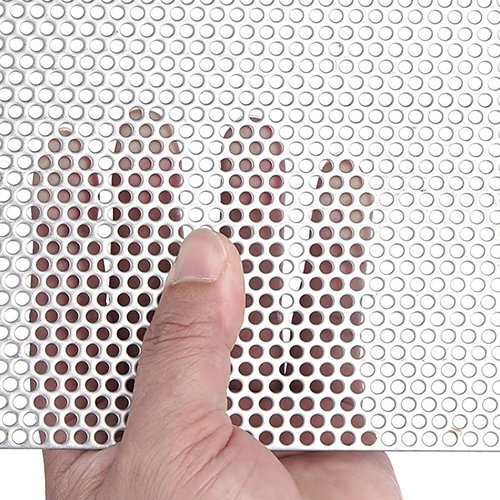

Hole Pattern Close-up
Parsh Nath Manufacturers Pvt. Ltd. manufactures a wide range of perforated metal sheets marketed under the trusted SNAKE® brand. Our in-house brand, trusted since the 1960s for supreme quality and reliability across industries.
We manufacture a wide range of perforated metal sheets punched in mild steel, galvanized, aluminum, stainless steel and special alloys. Perforated material has many potential uses to industry as well as to architects and designers because of its practical and aesthetic features.
Available Materials
Mild Steel (MS)
Galvanized (GI)
Aluminium
Stainless Steel — 304 / 316
Special Alloys
Usage & Applications
Engineering Industry
Food Processing
Building & Construction
Agricultural Industry
Nuclear Power Plants
Petrochemical Industry
Clothes Washer / Dryer Drums
Speaker Covers
Automotive Grills
Airplane Engine Silencers
Grain Dryers
Microwave Ovens
Computer Cabinets
Architectural Facades
Privacy Panels
Air / Liquid / Sound Control
Details Required for Quotation
We Need These Details to Provide an Accurate Quote
- 1 Type of material (MS / GI / SS / Aluminium)
- 2 Plate thickness
- 3 Plate width & length
- 4 Pitch & hole diameter
- 5 Shape of hole (model / pattern)
- 6 Margin size & angle of hole
Popular Hole Patterns & Dimensions

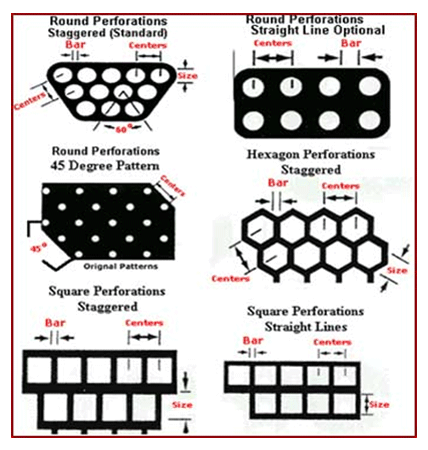

Popular Hole Patterns

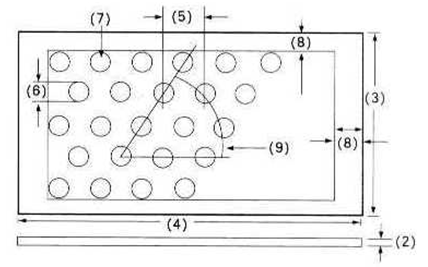

Sheet Dimensions Reference
Technical Specifications
Cold Rolled Steel Sheet
Thickness
0.2 mm – 1 mm
Length
1 m – 20 m
Hole Diameter
0.8 mm – 100 mm
Hot Rolled Plate
Thickness
0.3 mm – 10 mm
Max Size
1.5 m × 3 m
Hole Diameter
0.8 mm – 100 mm
How to Choose Perforated Sheets
A perforated sheet is a metal sheet punched with a regular pattern of holes. It is used where you need strength together with airflow, light, sound control or filtering. It also looks good, which is why architects and designers use it for facades and privacy panels, just as engineers use it in machines and equipment.
Start with the sheet. Cold rolled steel sheet is available in thicknesses of 0.2 mm to 1 mm and lengths of 1 m to 20 m, while hot rolled plate runs from 0.3 mm to 10 mm thick, up to 1.5 m x 3 m. Hole diameters go from 0.8 mm to 100 mm.
Then choose the hole. Small holes suit filtering and fine screening, larger holes allow more airflow and light, and the pitch between holes decides how open the sheet is. Pick the material to match the place: mild steel for general work, galvanized where rust is a concern, stainless steel 304 or 316 for food, chemical or hygienic use, and aluminium when weight matters.
Send us the material, thickness, sheet width and length, pitch and hole diameter, hole shape and margin size, or simply your drawing, and we will quote for your job. You may also like our expanded metal and welded mesh.
Perforated Sheets FAQs
What is a perforated sheet?
A perforated sheet is a metal sheet punched with a pattern of holes. We make perforated sheets in mild steel, galvanized iron, aluminium, stainless steel 304 and 316, and special alloys.
What thicknesses and hole sizes are available?
Cold rolled steel sheet is available from 0.2 mm to 1 mm thick and hot rolled plate from 0.3 mm to 10 mm thick, with hole diameters from 0.8 mm to 100 mm.
Can you make custom hole patterns?
Yes. Custom hole patterns are made as per your drawing.
What details do you need for a quote?
The type of material, plate thickness, plate width and length, pitch and hole diameter, shape of the hole, and margin size and angle of the hole.
Custom hole patterns available as per drawing. Contact us with your requirements for an instant quotation.
